Heavy Duty Wheel Centering Sleeve C-5001-GAS, Solution C

Solution C is a pending patented threaded internal centering sleeve. This wheel centering sleeve set is designed for use on steer and drive wheels as well as most trailers. These sleeves remain on the wheel stud permanently and are positioned at the 12, 4, and 8 o'clock locations. It is recommended to use the appropriate TRU-BALANCE centering pin tool or installation pin when mounting on the drive axles. Each set includes six sleeves (three per wheel) and will center one axle. Various sizes are available to fit most brake drums and wheels.

Specifications:

• Wheel Sizes: 19.50"/22.50"/24.50"
• Studs: 22mm
• Hole: 1"-1.063"
• Materials: Aluminum/Steel

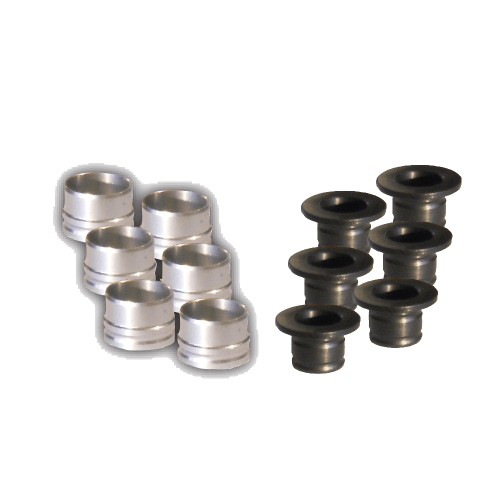

Includes:

• 6x C-2342-GS (Centers Brake Drum/Inner Wheel)
• 6x C-1611-AS (Centers Outer Wheel)
• Brake Drum Hole Size:
• 1.25" Diameter, 1/2" Depth

Features:

• Only for Dual Wheels
• Zinc Plated, Corrosion Resistant
• Sold in Sets of 6 per Axle
• Machined from Solid Steel Bar Stock
• 2-Piece System for Easy Install/Removal

Supported Brake Drums:

• Arvin Meritor: N/A
• Gunite: 3753AX, 3600A, 3771X, 3402X, 9006X, 3807X
• Conmet: 10001776
• Motor Wheel Centrifuse: N/A
• Webb: 66864B, 61950B, 66834F, 66889B
