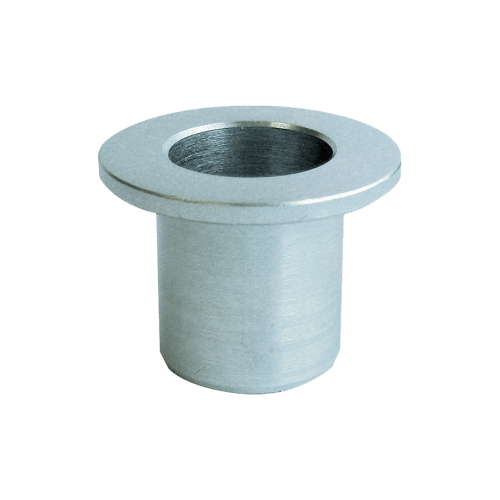

Solution C is a pending patented threaded internal centering sleeve. This wheel centering sleeve set is designed for use on steer and drive wheels as well as most trailers. These sleeves remain on the wheel stud permanently and are positioned at the 12, 4, and 8 o'clock locations. It is recommended to use the appropriate
TRU-BALANCE centering pin tool or installation pin when mounting on the drive axles. Each set includes six sleeves (three per wheel) and will center one axle. Various sizes are available to fit most brake drums and wheels.
Specifications:
19.50"/22.50"/24.50" Wheel
22mm Wheel Studs
1.053"-1.063" Wheel Hole
Steer/Drive Axles
Aluminum/Steel Wheels
Steer Axle: N/A
Drive Axle: Aluminum Super Single 14" Rim Wide Base Tire
