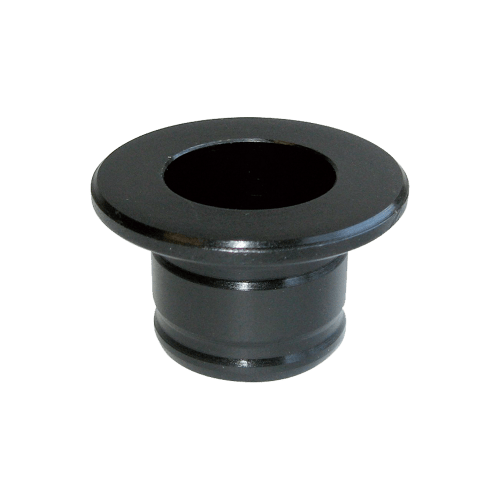

Heavy Duty Wheel Centering Sleeve C-1611-AS, Solution C

Solution C is a pending patented threaded internal centering sleeve. This wheel centering sleeve set is designed for use on steer and drive wheels as well as most trailers. These sleeves remain on the wheel stud permanently and are positioned at the 12, 4, and 8 o'clock locations. It is recommended to use the appropriate

TRU-BALANCE centering pin tool or installation pin when mounting on the drive axles. Each set includes six sleeves (three per wheel) and will center one axle. Various sizes are available to fit most brake drums and wheels.

Specifications:

• Wheel sizes: 19.50"/22.50"/24.50"
• Wheel studs: 22mm
• Wheel hole diameter: 1.053"-1.063"
• Axle types: Steer/Drive
• Material: Aluminum/Steel (Steer Axle: Aluminum, Drive Axle: Steel)

Features:

• Centers wheel only; remains on wheels
• Zinc-plated to resist corrosion
• Sold in sets of 6 per axle
• Machined from solid steel bar stock
