Wheel and Brake Drum Balancing Sleeves - B-1688-CS, Solution B

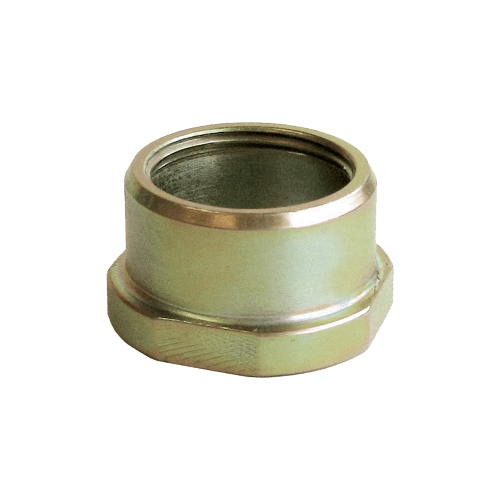

Solution B is a patented (#7,111,909) threaded internal centering sleeve. These sleeves stay on the wheel permanently, centering both the brake drum and the wheel. They are threaded inside for proper alignment at the 12, 4, and 8 o'clock positions. Each set includes six sleeves to center one axle; three sleeves per wheel. Multiple sizes are available to fit most brake drums and wheels.

Refer to the product specifications/instructions and video’s to choose the right centering pins for your needs.

Specifications:
Steel Wheels Only
Steer Axles Only
1.25" Hole Diameter - 1/4"-5/16" Hole Depth
Features:
Stays On Wheels
Zinc Plated To Resist Corrosion
Sold In Sets of 6 Per Axle
Machined from Solid Steel Bar Stock
Threaded Inside for Accurate Alignment
Supported Brake Drums:
Arvin Meritor
53-123512-002
53-123542-002
53-123589-002
53-123608-002
53-123627-002
Gunite
9000X
9001X
9035X
Conmet
N/A
Motor Wheel Centrifuse
90089BK
89870BK
90174BK
91265B
90600B
90137B
Webb
N/A
